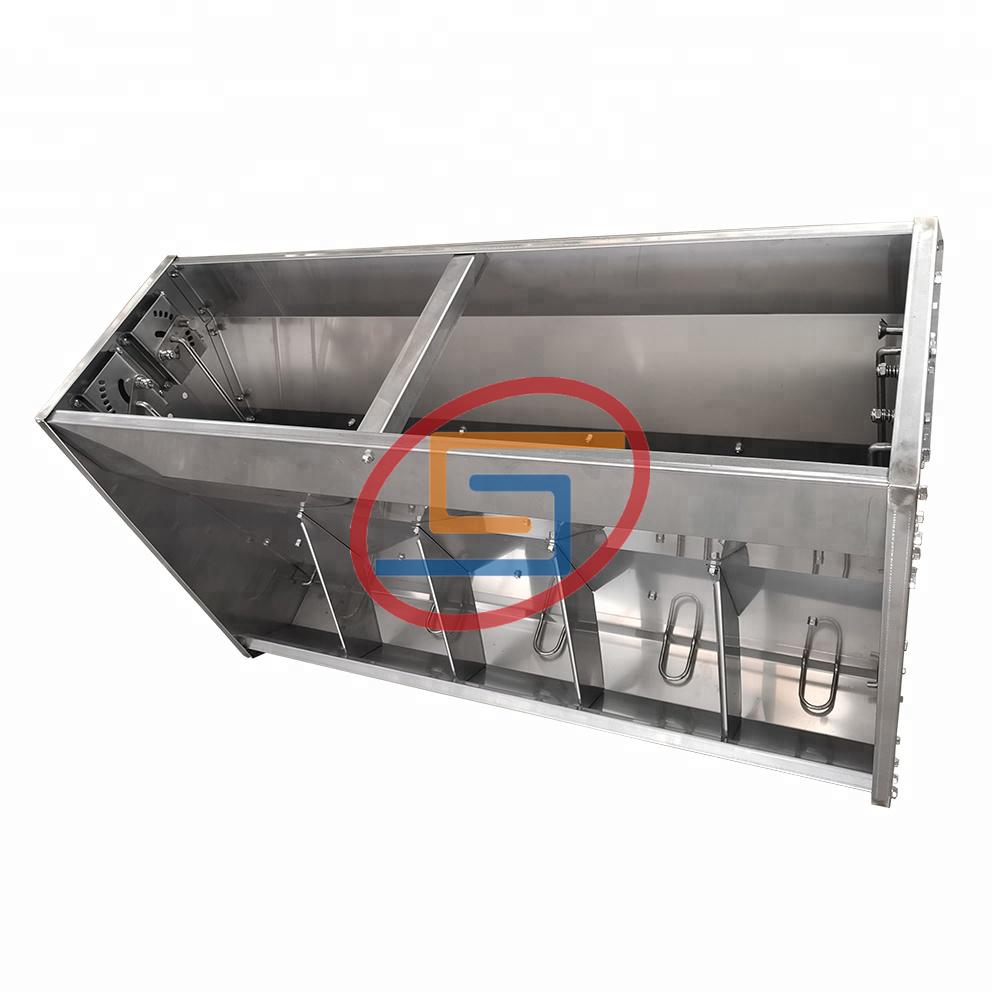

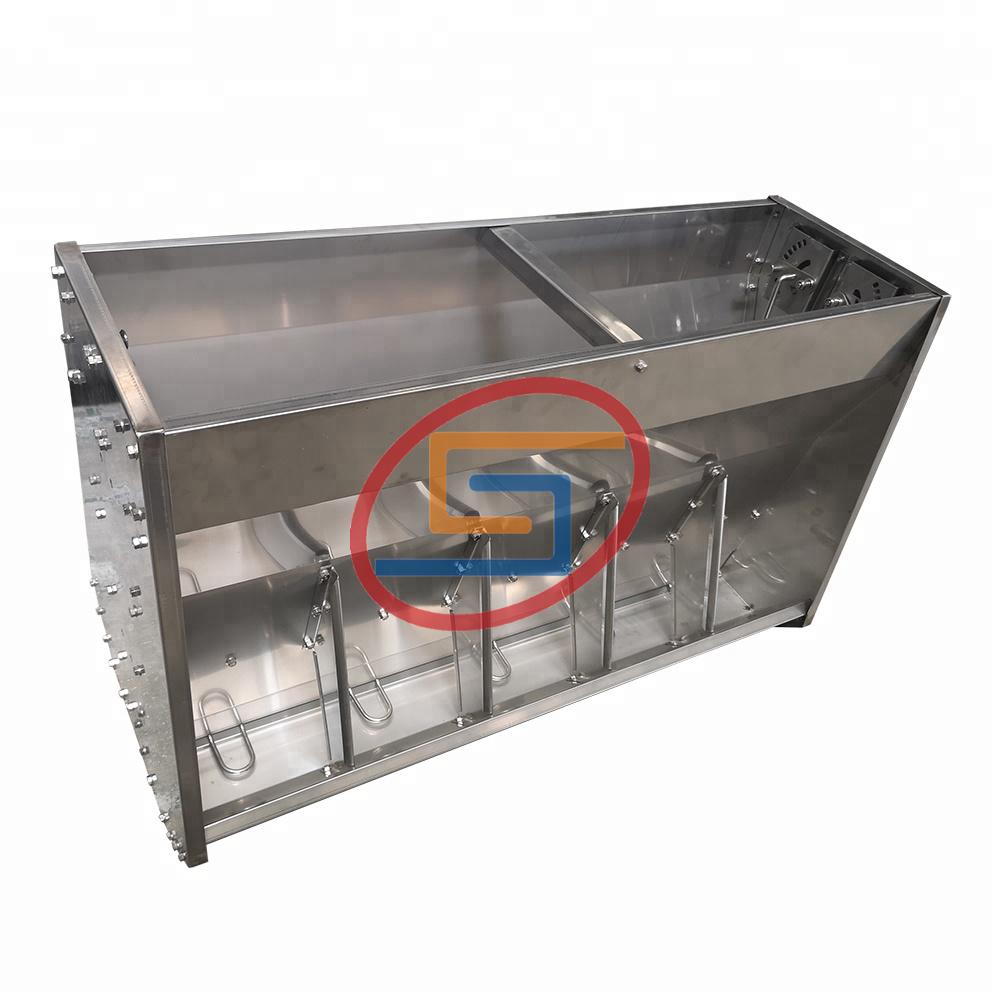

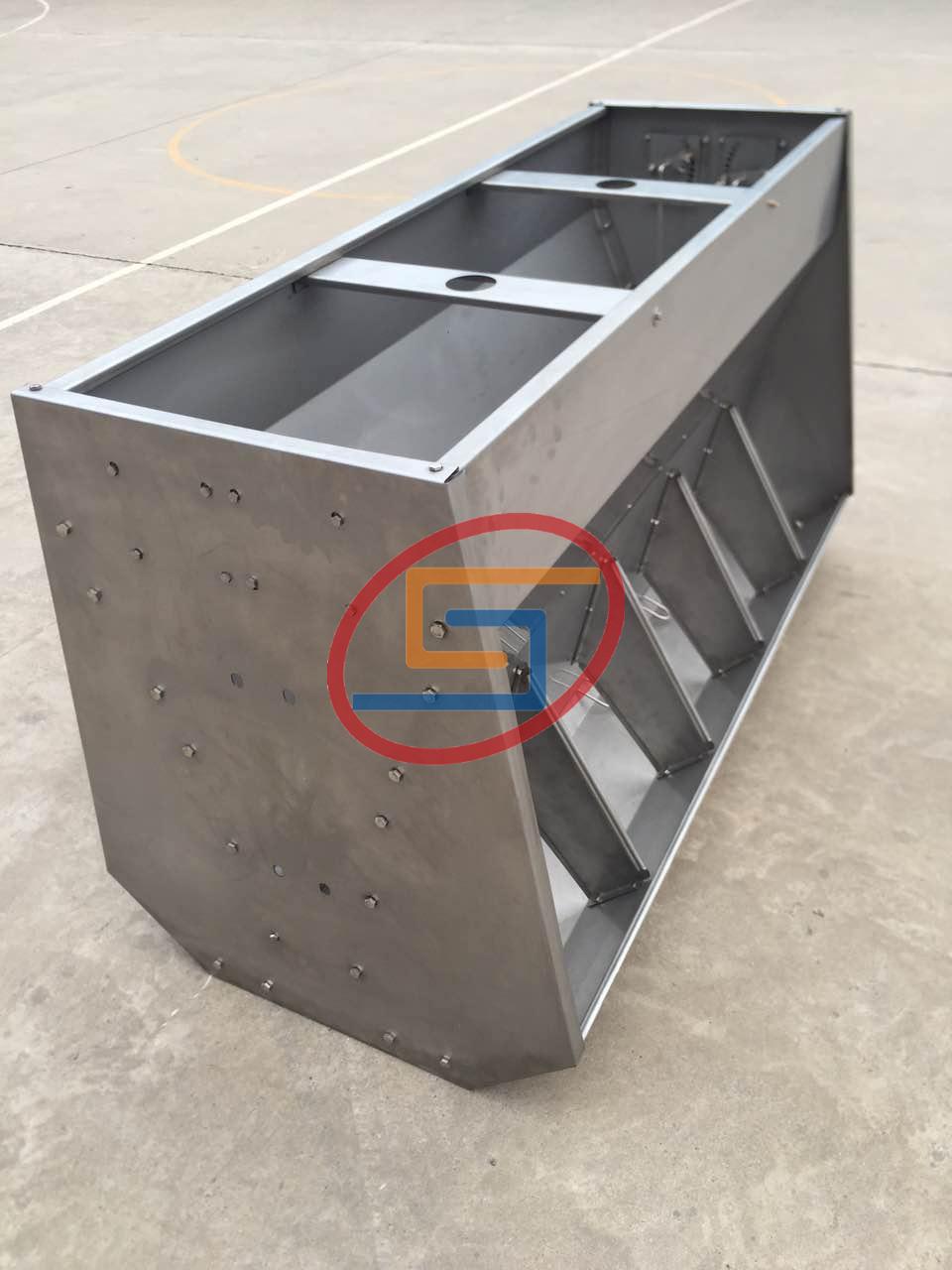

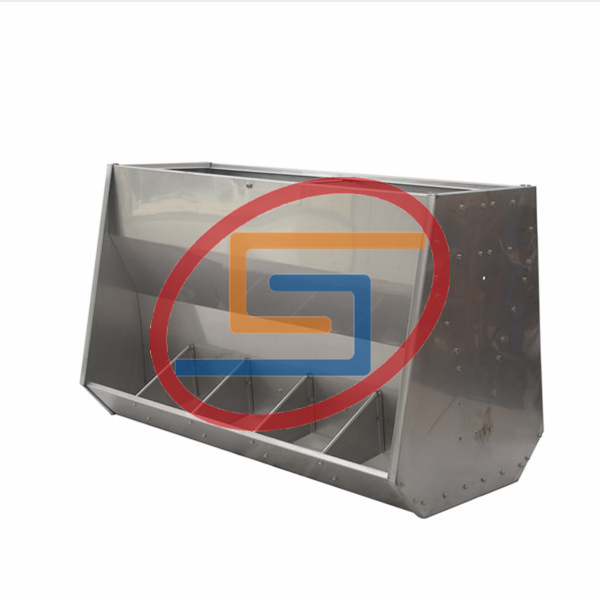

Stainless Steel Pig Feeder have single and double sid styles. feeder with 304/201 SUS mateiral, which is used for Finisher/Nursery pig. It’s a kind of automatic feeder, the feed dropping quantity can be controlled by the adjustable bar.
1. Double side feeding to serve two pig fences.
2. All stainless steel material, durable service life.
3. Unique design for easy disassemble and transport.
4. Feeding volume easy adjustable, watering device available.
5. No dead corner design effective solve the issues of feed wasting.
6. Dimensions can be customized .
Specification
|
Type |
Model |
Size |
Hole No. |
Thickness |
Material |
|
weaning pig |
single side |
700*350*550mm |
4 |
0.8 |
SUS 201 SUS 304 |
|
900*350*550mm |
5 |
0.8 |
|||
|
1200*350*550mm |
6 |
0.8 |
|||
|
double side |
600*500*550mm |
6 |
1.2 |
||
|
700*500*550mm |
8 |
1.2 |
|||
|
9600*500*550mm |
10 |
1.2 |
|||
|
Fatten pig |
single side |
1050*450*900mm |
4 |
1.2 |
|
|
1250*450*900mm |
5 |
1.2 |
|||
|
1500*450*900mm |
6 |
1.2 |
|||
|
double side |
1040*750*900mm |
8 |
1.2 |
||
|
1250*750*900mm |
10 |
1.2 |
|||
|
1540*750*900mm |
10 |
1.5 |
|||
|
Size can be customized according to customer’s requirement |
|||||
